R320M硬件参数
|
|
Chipset
|
IPQ5018(Dual-core ARM Cortex-A53 at 1.0 GHz )+QCN6102
|
|
Memory
|
512MB（support 256MB to 1GB）, DDR3L SDRAM ,800 MHz clock rate; 1600 MHz data rate
|
|
FLASH
|
SPI NAND 128MB（up to256MB）;
SPI NOR 8MB（up to 32MB）
|
|
NPU
|
One NPU that consists of 12
threaded programmable engines (UBI32 core), running at 1.0 GHz.
|
|
Ethernet
|
5GE ，10/100/1000M ，1WAN and 4LAN
|
|
Antenna
|
Two IPEX-1 connectors
|
|
BT
|
BT 5.1
|
|
Power supply
|
6V-16V
|
|
Power consumption
|
10W max
|
|

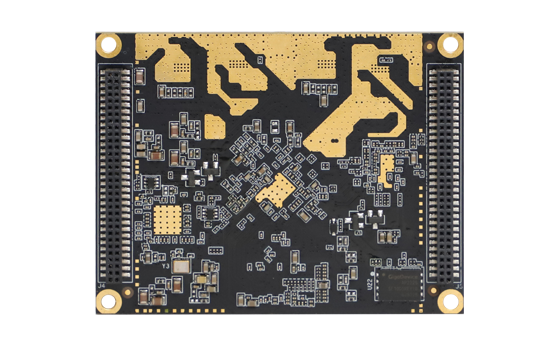

PCBA size
|
70* 55 * 1.6 mm
|
|

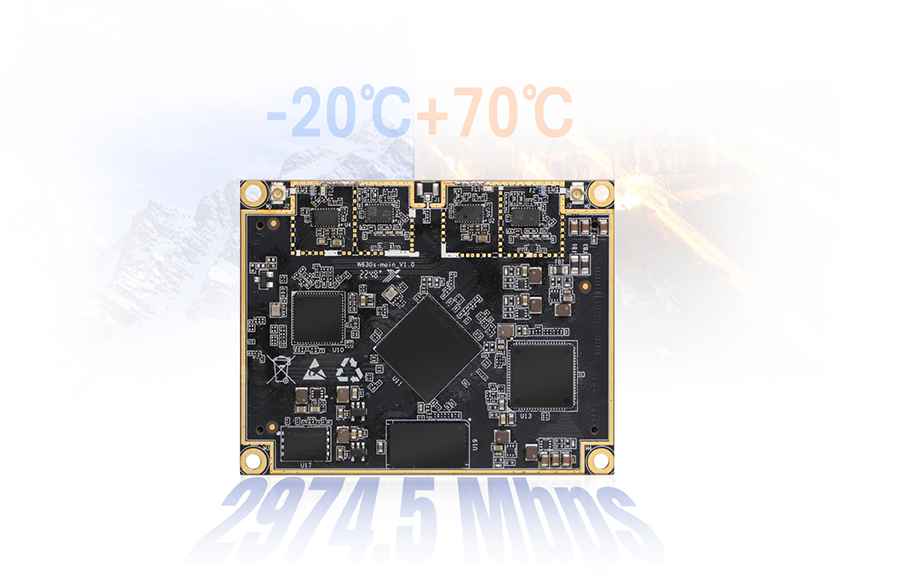

Operating temperature and humidity
|
-20~70°C, 10% ~ 90% without condensation
|
|
Storage humidity
|
-40~75°C, 5%～95% without condensation
|
|
WLAN Interface
|
|
Technical standard
|
IEEE 802.11a/b/g/n/ac/ax
|
|
Frequency band
|
2.4GHz-2.483GHz
5.15-5.25GHz, 5.25GHz-5.35GHz, 5.725GHz-5.850GHz
|
|
Wi-Fi
Spatial flow
|
2x2+2x2
|
|
2.4GHz Max PHY rate
|
573.5Mbps
|
|
5GHz Max PHY rate
|
2474Mbps
|
|
Modulation Type
|
OFDM:BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps
DSSS : DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
MIMO-OFDM : MCS 0-31
MIMO-OFDM(11ac): MCS 0-9
MIMO-OFDM(11ax): MCS 0~11
|
|
Wireless encryption
|
WEP （64 or 128 ）
WPA/WPA2/WPA3 个人版&企业版（IEEE 802.1X/RADIUS、TKIP、AES）
|
|

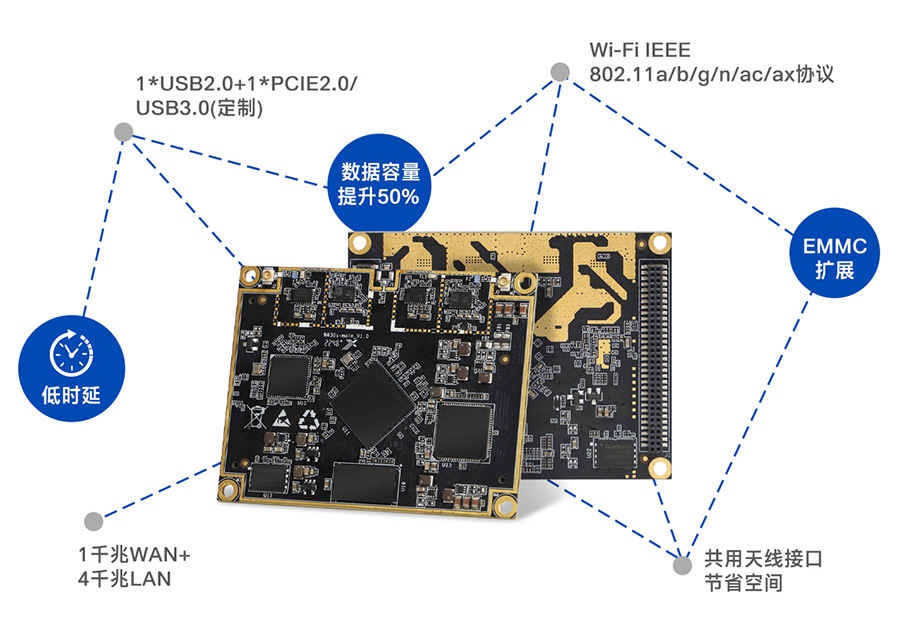

Other interface
|
|
Expand interface
|
1 x PCIe 2.0 / 1 x USB 3.0（Customized）
|
|
1 x USB 2.0
|
|
Miscellaneous interfaces
|
2*UART
n*GPIO
|
|
|
|
|
RF Parameters
|
|
|
2.4GHz
|
5GHz
|
|
TX Power
|
16 dBm @ MCS11 HE160 -43dB
18 dBm @ MCS11 HE80 -47dB
24 dBm @ MCS9HT40 -35dB
24 dBm @ MCS7 HT20/HT40 -30dB
26 dBm @ MCS0 HT20
|
16 dBm @ MCS11 HE160 -47dB
20 dBm @ MCS11 HE40 -43dB
23 dBm @ MCS9 HT40 -35dB
23 dBm @ MCS7 HT20/HT40 -30dB
25 dBm @ MCS0 HT20
|
|
RX Sensitivity
|
2.4GHz
|
5GHz
|
|
|
-69 dBm @ VHT40/MCS9/2SS
-63 dBm @ VHT40/MCS11/2SS
-68 dBm @ HE40/MCS9/2SS
-63 dBm @ HE40/MCS11/2SS
|
-65 dBm @ VHT80/MCS9/2SS
-59 dBm @ VHT80/MCS11/2SS
-64 dBm @ HE80/MCS9/2SS
-58 dBm @ HE80/MCS11/2SS
|
